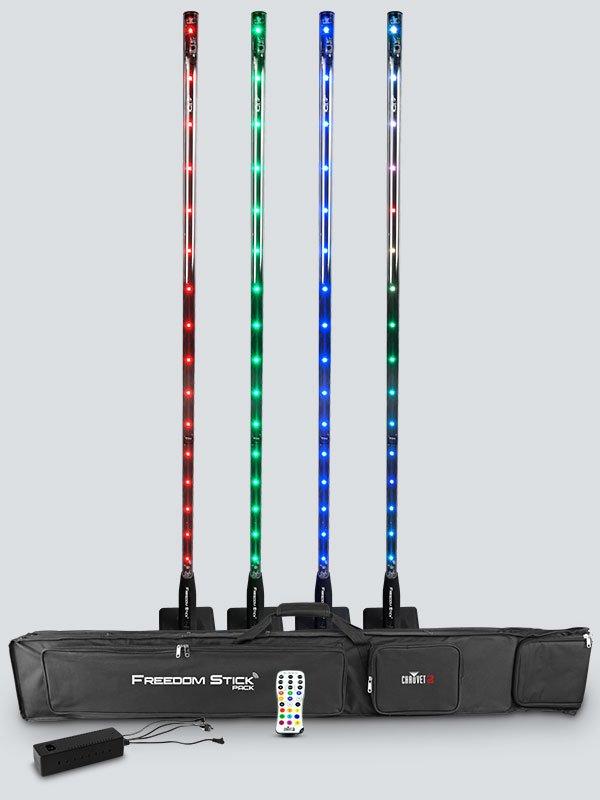

Freedom Stick Pack Includes: 4 Freedom Sticks, 1 Multi–Charger, 1 IRC-6 Remote and 1 Carrying Bag.

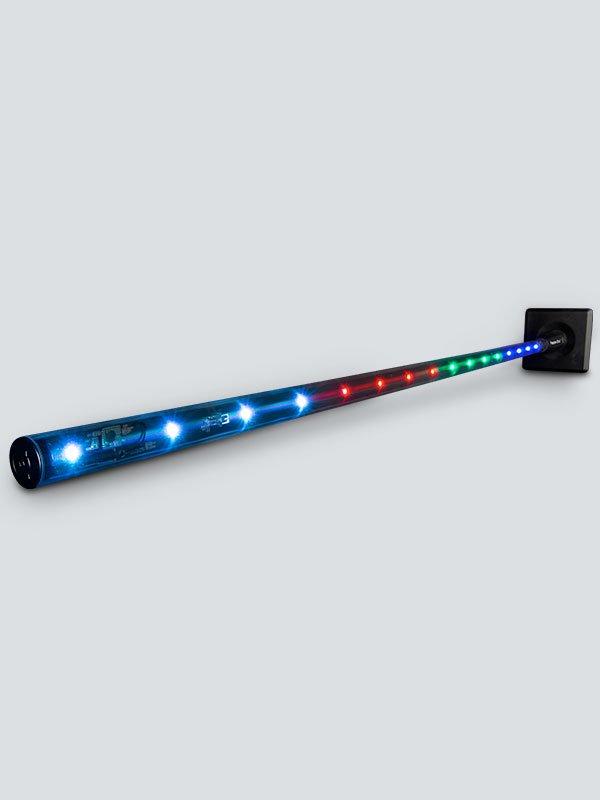

Freedom Stick is a unique and versatile free-standing RGB LED that can be pixel-mapped for ultimate programming creativity. This battery powered fixture has a built-in D-Fi receiver that allows it to be placed anywhere. The sticks also work excellently as truss warmers.

A detachable metal base allows you to mount them on truss (clamps sold separately). User customisable automated programs create complex looks in seconds. Additional control options include auto and sound programs via DMX, wireless master/slave or the IRC-6 remote.

CHAUVET Freedom Stick Steelasophical SteelBand Dj

Highlights

  • Unique and versatile free-standing LED array that adds pizazz to any event
  • Battery-powered and built-in D-Fi receiver allows the stick to be placed anywhere
  • Each LED can be pixel-mapped for ultimate show and programming creativity
  • Detachable metal base allows for truss mounting (clamps sold separately)
  • User-customizable automated programs create complex looks in seconds
  • Includes a carry bag and multi-charger for easy transportation and charging
  • Control auto and sound programs via DMX, wireless master/slave or the included IRC-6 remote
  • Use as a dazzling tabletop center-piece, outlining aisles, room separator or inside sticks of truss for the ultimate truss warmer

CHAUVET Freedom Stick Steelasophical SteelBand Dj

Specifications

  • DMX Channels: 3, 8, 48 or 50
  • Light Source: 32 SMD LEDs (tri-color RGB) 0.2 W (50 mA), 50,000 hours life expectancy
  • Strobe Rate: 0 to 30 Hz
  • Maximum Run Time: (all on): up to 6.5 hours
  • Recharge Time: 4.5 hours
  • Coverage Angle: 360°
  • Input Voltage: 15 VDC, 800 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
  • Power and Current: 35 W, 0.05 A @ 120 V, 60 Hz
    35 W, 0.03 A @ 230 V, 50 Hz
  • Weight: 16.4 lb (7.5 kg)
  • Size: 6.3 x 6.3 x 61 in (161 x 161 x 1550 mm) unit with base
  • Approvals: CE, FCC
  • Optional Controllers: IRC-6
  • Bag size: 60.4 x 2.6 x 8.7 in (1535 x 65 x 220 mm)
Freedom-Stick-Pack-FRONT-Steelasophical-Steelband
CHAUVET Freedom Stick Steelasophical SteelBand Dj uk
CHAUVET Freedom Stick Steelasophical SteelBand Dj uk Gary Trotman
Steelasophical Steel Band Chauvet Freedom Sticks 01

Steelasophical steel band and mobile DJ service using the Chauvet Freedom-Sticks at the Nottinghamshire Golf and Country Club

Steelasophical steel band and Steelasophical mobile DJ  at the Nottinghamshire Golf and Country Club

Steelasophical Steel Band Chauvet Freedom Sticks 02

Using the Chauvet Freedom Sticks at the Robin Hill Adventure Park, Isle of Wight for their Caribbean Summer Nights Carnival event

Steelasophical Steel Band Chauvet Freedom Sticks Robbin Hill

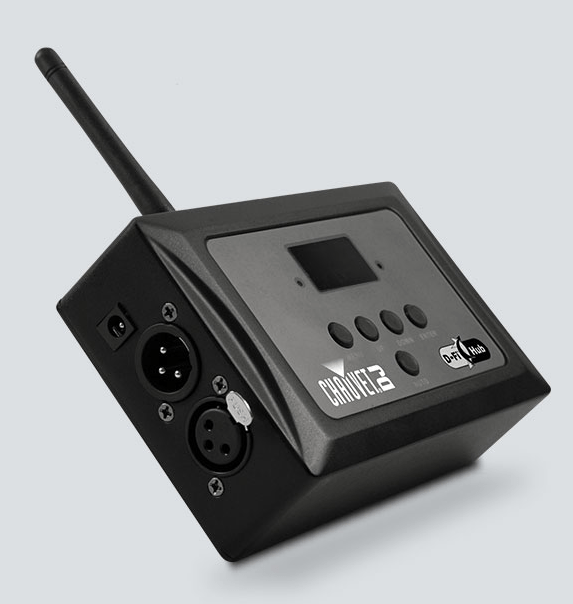

D-Fi Hub

D-Fi Hub is a compact, easy-to-use DMX unit that functions as either a transmitter or receiver. For more stable communication between units, it operates on a 2.4 GHz frequency range and includes an “auto” function which automatically finds the best frequency and syncs the units effortlessly. You can wirelessly synchronize an unlimited number of D-Fi-ready fixtures simultaneously, and operate them using the simple navigation on the OLED digital display.

  • Compact, easy-to-use wireless D-Fi transmitter and receiver in a single unit
  • Wirelessly synchronize an unlimited number of D-Fi-ready fixtures and receivers simultaneously
  • Built-in options include manual or automatic channel selection
  • Simple navigation and text readout using the OLED digital display
  • Mounting options include built-in hook and loop fastener strap, keyhole mounting holes, M10 and M12 threaded holes for direct mounting to truss
  • Fully FCC/RTTE compliant
D-Fi Hub
  • DMX Connectors: 3-pin XLR
  • Input Voltage: 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
  • Power and Current: 4 W, 0.1 A @ 120 V, 60 Hz
    4 W, 0.1 A @ 230 V, 50 Hz
  • Weight: 1.2 lb (0.6 kg)
  • Size: 5.59 x 3.58 x 1.81 in (142 x 91 x 46 mm)
  • Approvals: CE, FCC
  • Max Unobstructed Distance:: 656 ft (200 m)
